MarSurf |
便携式表面测量仪

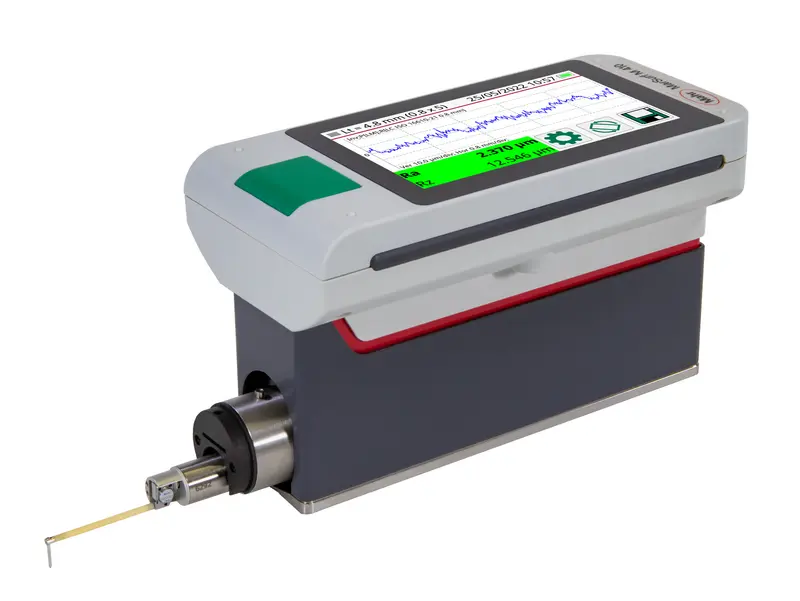

MarSurf M 410
产品货号 6910290
不仅测量室而且在生产中也越来越需要采用无导块扫描的表面评估。
The best among the "mobile" devices
- Simple and intuitive operation: as easy as operating a smartphone
- Large, illuminated 4.3" TFT touch display
- Assistant-guided tilt adjustment
- Unique touch arm management
- Separation of display and drive unit
- 55 parameters
- Magnetic stylus arm mounting
- Automatic cutoff selection: ensures correct measurement results even for the non-measuring technician
Easy documentation
- Direct printing on the mobile printer (as an option or directly in the set with printer)
- Data backup as TXT, X3P, CSV and PDF file
- Creation of finished PDF protocols directly in the measuring device
- Customer-specific comments for the PDF protocol are entered directly on the MarSurf M 310
- Display and print MRK and ADK curves
- Save more than 30000 measuring programs (Quick & Easy)
Extended interface diversity
- Micro-USB interface for remote control via ASCII commands, e.g. via statistical process control software
- USB-A interface for connection of e.g. a USB Bluetooth adapter or USB/Bluetooth printer
- Transmission of measurement protocols and data optionally via Bluetooth or cable
- IATF 16949 compliant – secure traceability with MarConnect
MarSurf M 410 | 产品编号 6910290 | |
---|---|
测量速度 | 0.1 mm/s; 0.5 mm/s; 1.0 mm/s |
定位速度 | 3 mm/s |
尺寸 (mm) | 198 mm x 77 mm x 97 mm |
测量原理 | Tactile stylus method |
测量单元 | metric/inch |
测量力 (N) | 0.00075 |
滤波器符合 ISO/JIS 标准 | Gaussian filter according to DIN EN ISO 16610-21, robust Gaussian filter according to DIN EN ISO 16610-31, special filter according to DIN EN ISO 13565-1, ls filter according to DIN EN ISO 3274 (can be switched off) |
截止波长Lc 符合 ISO/JIS | 0,08 mm , 0.25 mm , 0.8 mm , 2.5 mm , 可自定义 , 可自定义 |
短行程符合 ISO/JIS | selectable |
采样长度数量符合 ISO/JIS | selectable: 1 to 16 |
数据接口 | USB A , MarConnect (RS-232) , Micro SD 槽,用于最高 32 GB 的 SD / SDHC 卡 |
语言 | 德语 , 英语 , 法语 , 意大利语 , 西班牙语 , 葡萄牙语 , 荷兰语 , 瑞典语 , 俄语 , 波兰语 , 捷克语 , 日语 , 中文 , 韩语 , 匈牙利语 , 土耳其语 , 罗马尼亚语 |
储量 | 3900 个轮廓,或500,000 个结果,或1500 条 PDF文档,最大可使用 Micro SD 卡扩展到 32 GB(存储容量增加 320 倍) |
测头 | inductive skidless probe system |
IP 防护等级 | IP 40 |
相对湿度 | 30 % to 85 %, non-condensing! |
重量 | 1.42 KG |
重量测量仪 | 300 g |
重量驱动单元 | 1120 g |
测量仪器尺寸 (L x W x H),单位 (mm)。 | 162 mm x 77 mm x 35 mm |
驱动单元尺寸 (L x W x H),单位 mm。 | 194 mm x 38 mm x 72 mm |
其他 | Lock/code word protection, date/time |
针尖 | 2 µm; 5 µm |
参数 | Ra , Rq , Rz , Rz (JIS) , Rz (Ry (JIS) 等效于 Rz) , Rmax , Rp , Rp (ASME) , Rpm (ASME) , Rv , R3z , Rk , Rpk , Rvk , Mr1 , Mr2 , A1 , A2 , Vo , Rt , RPc , Rmr (tp (JIS, ASME) 等效于 Rmr) , RSm , RS , Rdq , RSk , Rku , Rdc , RHtp , Pdc , Pa , Pt , PMr , Wa , Wq , WSm , WSk , Wt , CR , CF , CL , R , Ar , Rx , W , AW (MOTIF) , Wx (MOTIF) , Wte (MOTIF) , NW (MOTIF) , NR (MOTIF) , NCRX (MOTIF) , CPM (MOTIF) |
防护系统 | IP 40 |
可充电电池 | 锂离子电池,3.7 V,标称容量 11.6 Wh,最少 1200 次测量 |
宽范围电源 | 100 to 264 V |
测量范围 mm | 500 μm (±250 µm) for probe arm length 45 mm to 1500 µm (±750 µm) for probe arm length 135 mm |
我们产品的各种应用
机械工程
轴承、轴、支架、阀门、工程和精密机械行业的各种组件
汽车
转向、制动系统、变速箱、曲轴、凸轮轴、气缸头、气缸体、涡轮增压器
医学
髋关节和膝关节假体的粗糙度测量
航空航天
涡轮组件
光学
各种光学元件
轴承、轴、支架、阀门、工程和精密机械行业的各种组件
汽车
转向、制动系统、变速箱、曲轴、凸轮轴、气缸头、气缸体、涡轮增压器
医学
髋关节和膝关节假体的粗糙度测量
航空航天
涡轮组件
光学
各种光学元件
