MarSurf |
便携式表面测量仪

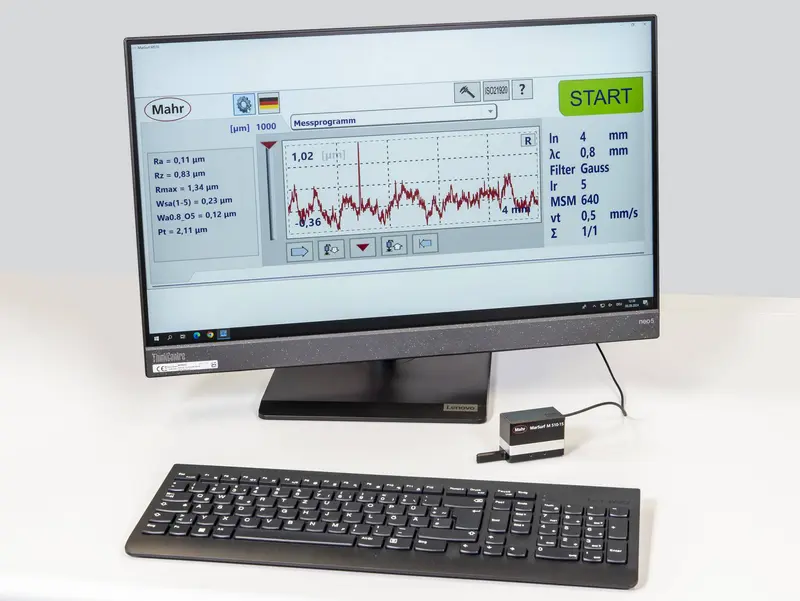

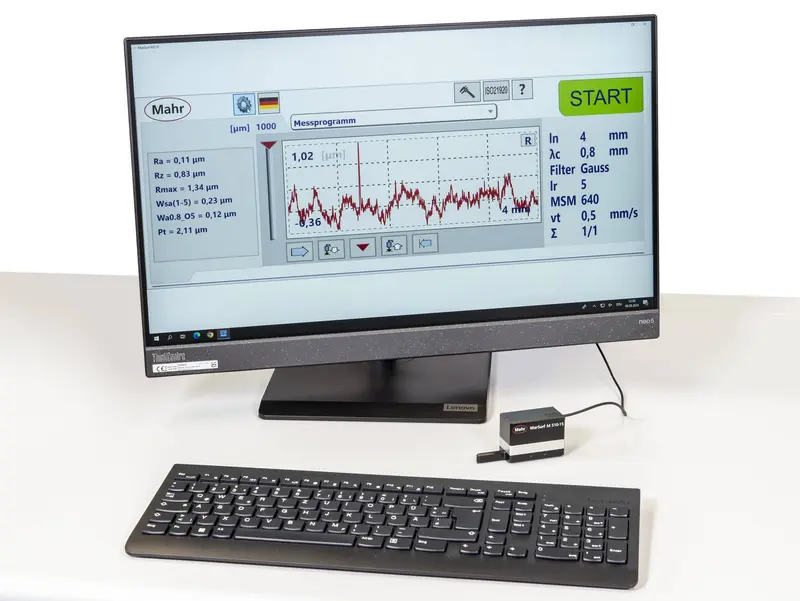

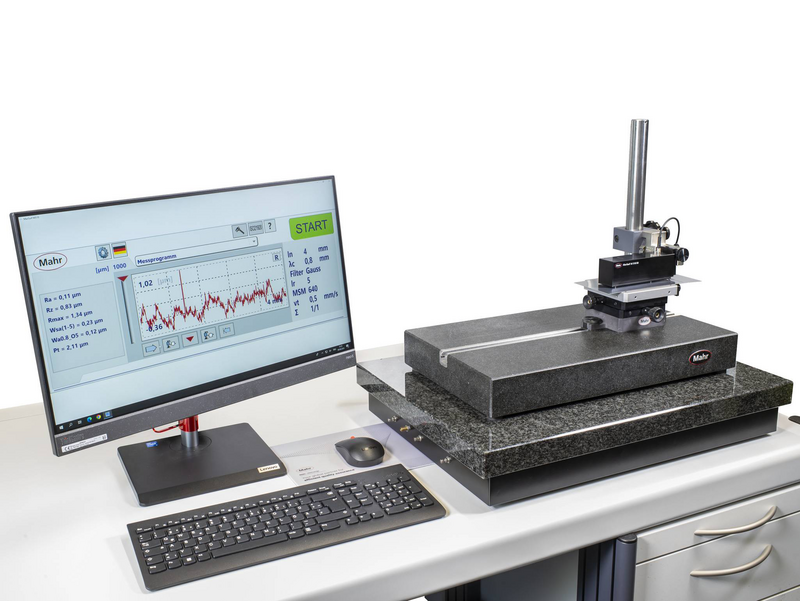

MarSurf M 510 MiniProfiler
产品货号 6910310
“移动”设备中的佼佼者
不仅测量室而且在生产中也越来越需要采用无导块扫描的表面评估。
Compact design
- Smallest free probe system on the market
- Handy and convenient thanks to its small size and weight
- 3 different versions in measuring lengths of 15 mm, 50 mm and 75 mm
- Vibration-resistant - can be used in production and processing machines

Unique
- Unique device for the sheet metal industry with free scanning system in accordance with SEP 1941 (measurement of the waviness characteristic value WSA(1-5) on cold-rolled flat products)
- Motorized probe pin lifting/lowering – The probe pin is the only wearing part and is always protected in the housing.
- Easy-to-use software
- Easy installation and set-up by the customer

Standard-compliant measurement
- Standard-compliant determination of roughness parameters and application of filters
- Mobile and convenient testing of P, R and W parameters with just one device
- Measurement in accordance with new standard DIN EN ISO 21920-2 : 2021
- Measuring distances up to 75 mm for waviness and large roughness

MarSurf M 510 MiniProfiler | 产品编号 6910310 | |
---|---|
扫描长度末尾(X 方向) | 15 mm |
扫描长度 (Lt) | till 15 mm |
Measuring principle | tactile stylus method , tactile skidless probe |
测量力 (N) | 0.00075 N |
Probe tip radius | 2 µm |
滤波器符合 ISO/JIS 标准 | DIN EN ISO 16610-21 (Gaussian filter), DIN EN ISO 13565 Part 1 (specific filters), DIN EN ISO 16610-31 (robust Gaussian filter) |
截止波长Lc 符合 ISO/JIS | 0,08 mm , 0.25 mm , 0.8 mm , 2.5 mm , 8,0 mm , 可自定义 |
采样长度数量符合 ISO/JIS | 5 |
测量速度 | 0.1 mm/s 到 2 mm/s |
定位速度 (mm/s),X 轴 | till 2 mm/s |
表面参数 |
Over 75 characteristic values for R-, P-, W-profile |
数据接口 | USB A , 4x USB 3.1 Gen. 2 , 显示端口 , HDMI , 外置无线 |
测头 | inductive skiddless probe system |
操作温度 | 5 °C 到 35 °C |
重量驱动单元 | 150 g |
驱动单元尺寸 (L x W x H),单位 mm。 | 52 x 28 x 40 |
其他 | other standards: Daimler MBN 31007, SEP 1941 |
针尖 | 2 µm |
测量范围 mm | 1 mm |
我们产品的各种应用
Mechanical engineering
Bearings, shafts, racks, valves, various components from the engineering and precision mechanics industries
Automotive
Steering, brake systems, transmissions, crankshafts, camshafts, cylinder heads, cylinder blocks, turbochargers
Medical
Roughness measurement on hip and knee endoprostheses
Aerospace
Turbine components
Optics
Diverse optical components
Bearings, shafts, racks, valves, various components from the engineering and precision mechanics industries
Automotive
Steering, brake systems, transmissions, crankshafts, camshafts, cylinder heads, cylinder blocks, turbochargers
Medical
Roughness measurement on hip and knee endoprostheses
Aerospace
Turbine components
Optics
Diverse optical components
标签 | 产品货号 | 微调范围 mm | 轴直径 V 形块 | 棱柱粘合力 | 安装孔 | 总高度 | 支撑臂伸展范围(最大) | 产品重量 | |
---|---|---|---|---|---|---|---|---|---|
![]() |
带磁性底座的测量台座 815 MA |
4416000 | 2 mm | 20 - 100 | 450 N | 8H7 | 285 mm | 230 mm | 2.5 kg |
![]() |
300 mm 测量支架带铸铁底座 ST-D |
6710803 | |||||||
![]() |
300 mm 测量支架带花岗石底板 ST-F |
6710806 | |||||||
![]() |
300 mm 测量支架带花岗岩板和 T 形槽 ST-G |
6710807 | |||||||
![]() |
V 形块 PP |
6710401 | |||||||
![]() |
XY 工作台 CT 120 |
6710529 | |||||||
![]() |
平行虎钳 PPS |
6710604 |
