MarSurf LD 140

产品货号 6269040

Highest precision with simultaneous roughness and contour measurement with 140 mm tracing length.

The new MarSurf family CD, GD, VD and LD offers precision products with maximum speed and flexibility.
A better floor-to-floor time of up to 65% is convincing proof of the speed. The flexibility is demonstrated by the large measuring range, the workpiece flexibility (even up to 80 kg) and the simple clamping system. The latter again supports repeatability and therefore accuracy.
The special feature of the MarSurf LD is that the probe arm unit simultaneously records roughness and contour data, which can be evaluated in one go to save time.

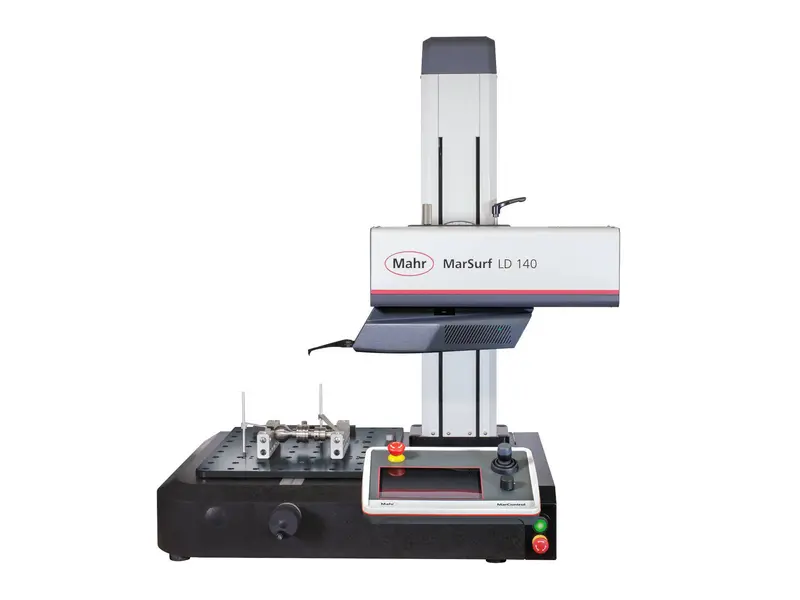

MarSurf LD 140

Efficiency and precision combined

Measure roughness and contour at the same time and with maximum accuracy with the new LD 140/280:
  • Newly developed, highly efficient touch system
  • Single acquisition of roughness and contour measurement data and simultaneous evaluation

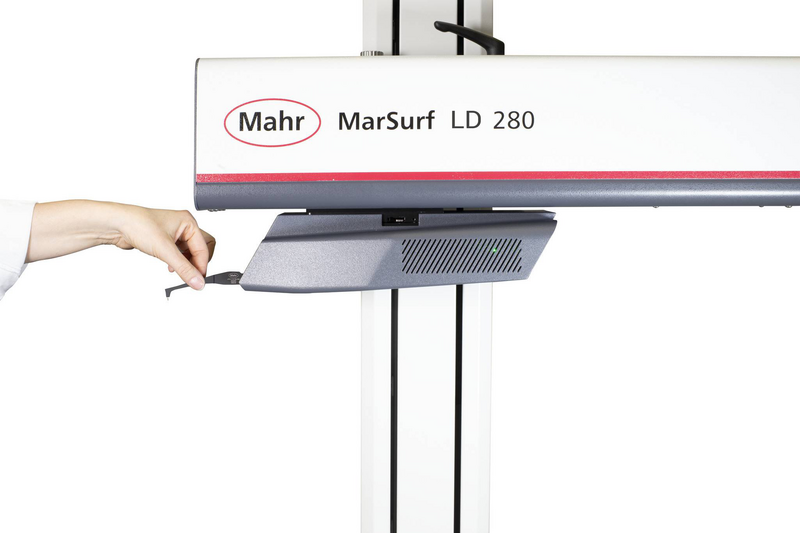

  • Easy probe arm change via magnetic interface with chip recognition and automatic tactile force selection
  • Enormous time and cost savings compared to conventional measuring devices.
Modern and suited exactly to your needs:
  • X-axis optionally with 140 or 280 mm; Z-axis optionally with 350 or 600 mm available (always CNC).
  • TY table axis optionally motorized or manually adjustable.
  • Use of the current MarSurf platform control and thus long-term service and spare parts supply.
Simply measure faster:

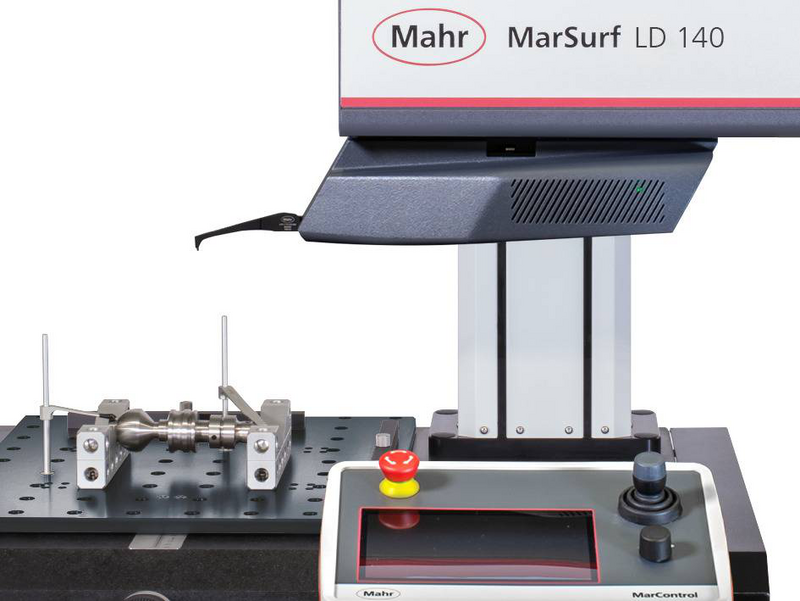

  • The simple clamping system positions workpieces safely, quickly and correctly.
  • The measurement itself is up to 65 % faster thanks to the fast axes and the new probe system (measured using the example of a journal).
  • The entire process can be automated, thanks to CNC axes and the MarWin measurement and evaluation software. This enables further savings in the process on site.
MarSurf LD 140 | 产品编号 6269040
扫描长度开始(X 方向) 0.1 mm
扫描长度 (Lt) 0.01 - 140 mm
测量力 (N) .7 mN to 30 mN, adjustable via soft
测量速度 0.02 mm/s 到 10 mm/s
定位速度 (mm/s),X 轴 0.02 - 200 mm/s
Positioning speed Z-axis 0.02 - 50 mm/s
测头 Combined roughness and contour probe system
测杆长度 max. 250 mm
操作温度 15 °C 到 45 °C
存储温度 -15 °C 到 50 °C
Workpiece weight max. 90 kg
其他 manual TY

我们产品的各种应用

机械制造
轴承,螺纹,螺纹杆,滚珠丝杠,轴,架

生产附近的计量
半自动化流程中的轮廓测量

汽车行业
转向,制动系统,变速箱,曲轴,凸轮轴,气缸头

医疗
髋关节和膝关节假体、医用螺丝、牙科种植体的轮廓测量
