MarVision MM 500 CNC

产品货号 4248421

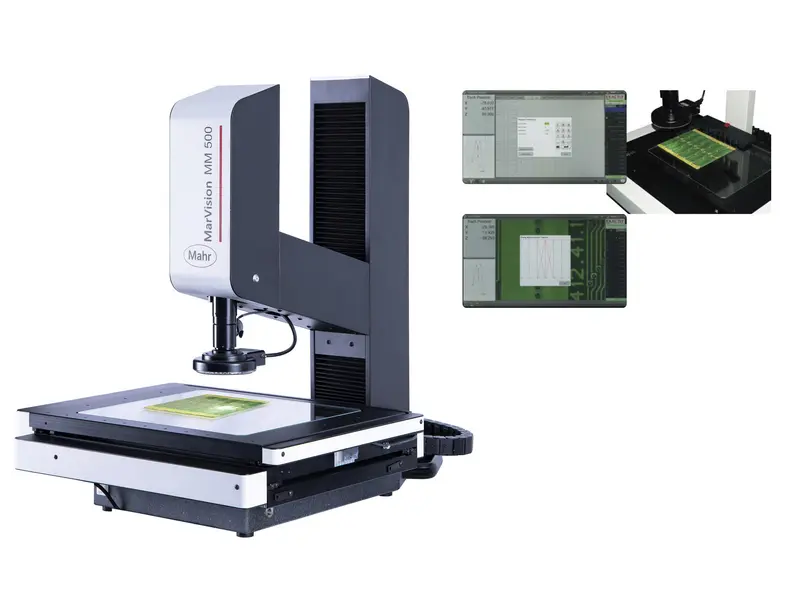

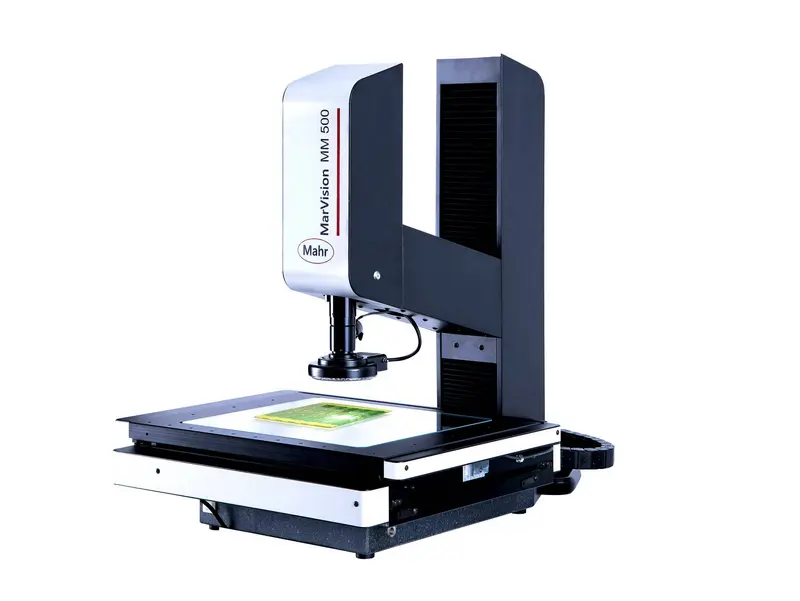

MarVision MM 500 CNC

Ideal for fast measurement

The MarVision MM 500 inspects, for example, turned, milled, punched and bent parts, plastic parts or electronic circuit boards. The measuring microscope uses automatic edge detection to determine geometric elements such as points, straight lines, circles, distances, angles or intersections on these workpieces without contact. Thanks to the optical incremental measuring system, it offers outstanding accuracy and reliability. In addition, its color camera captures particularly high-contrast images.

Features
  • Integrated color camera
  • Motorized zoom lens (0.7x - 4.5x) with coaxial illumination
  • LED ring light: 1 ring and 4 segments each individually switchable and dimmable
  • LED transmitted light: Dimmable
  • Pointer for position finding
  • Massive base made of hard granite
  • Stable steel cross table, precision-mounted
  • Quick and fine adjustment of the axes
  • Excellent accuracy and reliability thanks to optical incremental scale
Operating and display unit M3-software with touchscreen PC
  • 23" touchscreen with keyboard and mouse
  • Opperating system Windows
  • Operation via Multi-Touch screen or with mouse / keyboard
  • M3-Software
  • Large video image
  • Reference / actual evaluation with tolerances
  • Record output with company logo

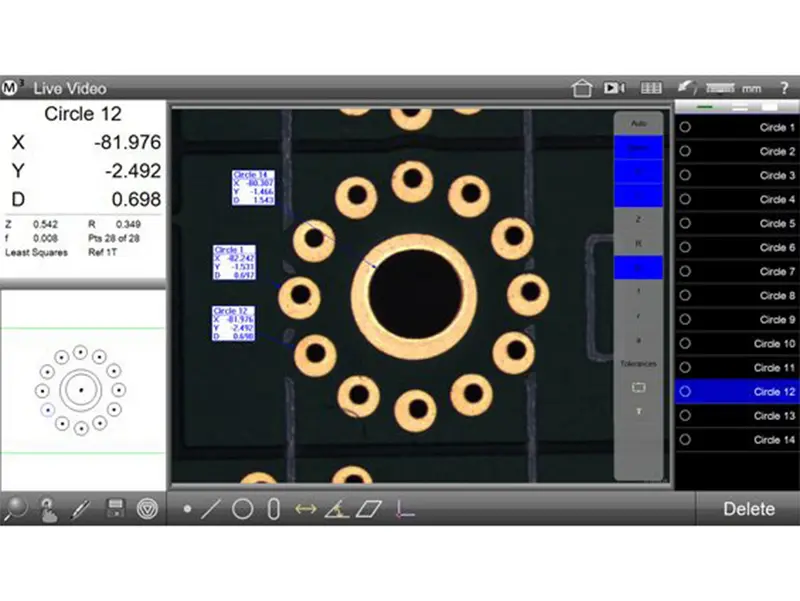

  • Graphic display with dimensioning
  • Statistics
测试件最大高度 200 mm
电源 230 V/115 V; 50/60 Hz
测量系统 02 built-in incremental scale
测量范围 XY (mm) 200 / 100
测量系统 - 分辨率 (mm) 0.001
尺寸 (mm) 445 x 463 x 800
测量系统 - E1 X/Y (µm) 1.9 + (L/100)
包装内容 触摸屏计算机 M3 软件 , 说明书 , Mahr 校准证书
放大率 35 - 225x
测量系统 - E2 XY (µm) 2.9 + (L/100)
照明度 LED back and front illumination, adjustable
工作台尺寸,单位 mm 370 x 210
工作台负载(最大)[kg] 20
测量系统 02 built-in incremental scale
测量范围 XY (mm) 200 / 100
测量系统 - E1 X/Y (µm) 1.9 + (L/100)
放大率 35 - 225x
测量系统 - E2 XY (µm) 2.9 + (L/100)
照明度 LED back and front illumination, adjustable
Measuring system - resolution in mm 0.001 mm
工作台尺寸,单位 mm 370 x 210
工作台负载(最大)[kg] 20

我们产品的各种应用

  • Measurement or determination of geometric elements (point, straight line, circle, distance, intersection point, etc.) by automatic edge detection, e.g. on punched and bent components, plastic components, and circuit boards.
准确,可重复的测量
Your measurement data is recorded reliably and repeatably, ensuring the highest quality.
可测的工件范围广泛
Fast material-independent measurement of any geometries as well as form and position measurement.
直观的操作
Simple user-guided interface with automatic functions for all key measurement parameters, as well as the use of measurement recipes for recurring measurement tasks.
